ZDM100 12head automatic grinder
Summary：
Keywords: Stone machinery
Classification：
Stone Slab Grinding machine
E-mail：

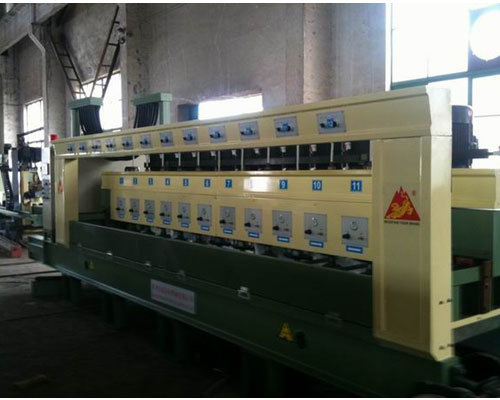

ZDM100 12head automatic grinder
|
It is suitable for grinding and polishing slab.It is with logical construction;reliable performance;highly efficiency running.Control system is advanced, which adopts PLC control and with text display,which realizes intelligentize control. |
||
|
Model |
ZDM100-12 |
ZDM125-12 |
|
Processing width |
300-1000mm |
300-1250mm |
|
Processing thickness |
10-40mm |
10-40mm |
|
Grinding head quantity |
12pieces |
12pieces |
|
Grinding head motor power |
12*7.5kw |
12*7.5kw |
|
Transmission-speed for belt |
0-1600mm/min |
0-1600mm/min |
|
Compressor provide presssure |
0.60-0.8Mpa |
0.60-0.8Mpa |
|
Cooling water pressure |
≥0.15Mpa |
≥0.15Mpa |
|
Water consumption of single-head |
≥25L/min |
≥25L/min |
|
Total weight |
10000kgs |
11000kgs |
|
Installation size |
7200*2360*2560mm |
7200*2560*2560mm |
