cp08

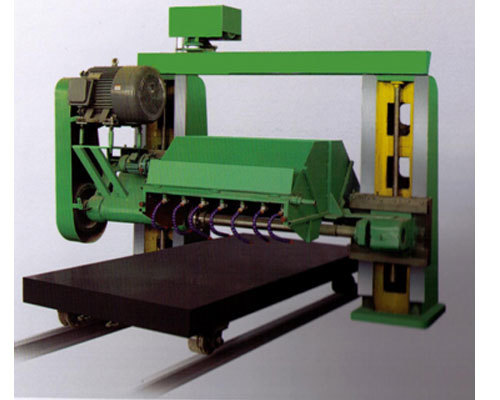

The main design features of the aircraft in a dual column gantry-type structure,and beam auto-sliding,tub automatic walk,frequency control,and laser-marking device with positioning,effectively iproving the work efficiency. The machine can simultaneously install the 1000-1200mm blade diameter of 7-8 pieces. Can be used for sawing granite,marble,stone articles,such as curb and railings.

Blade diameter:   1000-1200mm

Spindle speed:     759r/min

Blade lift range:   1100mm

Main motor power:  37kw

Max. dimensions:  4000*900*390mm

Total power:        40.55kw

Cross-arm transverse range: 300mm

Overall dimension(L*W*H):  6000*2900*2200mm
