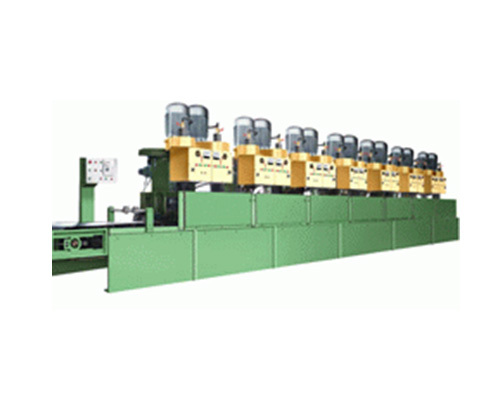

MODEL CGM-600 14-HEAD CONTINUOUS GRINDING AND POLISHING MACHINE

This machine, being a polishing equipment on granite and marble slab production line, can grind, polish the leveled and cut-off slabs whose upper surface will obtain smooth and flat finish and that will be conveyed to next process for further processing.

Main technical parameters:

rotation rate of main shaft    grinding        408rpm

productivity                       180～280 m2/min

rotation rate of main shaft polishing          442rpm

max.polishing width                             600 mm

working pressure of hydraulic system        8.5Mpa

the thickness of grinding slabs             8～60 mm

water consumption            200L/min

number of grinding head                   10 pieces

total power                        168.7kw

number of polishing head                   4 pieces

overall dimensions           12830×1780×2430mm

speed of conveyor belt（stepless）   0.25～2.5m/min

total weight                        15000kg
