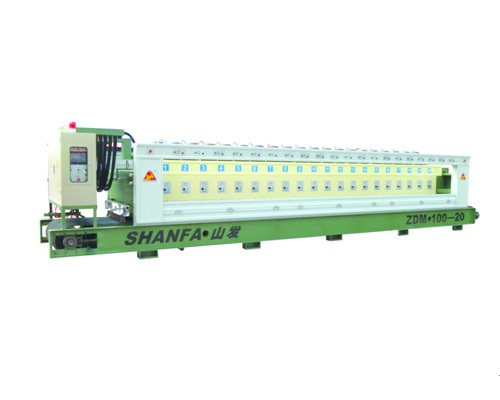

ZDM100 20-head automatic grinder
Summary：
Keywords: Stone machinery
Classification：
Stone Slab Grinding machine
E-mail：
ZDM100 20-head automatic grinder
|
It is suitable for grinding and polishing slab.It is with logical construction;reliable performance;highly efficiency running.Control system is advanced, which adopts PLC control and with text display,which realizes intelligentize control. |
||
|
Model |
ZDM100-20 |
ZDM125-20 |
|
Processing width |
300-1000mm |
300-1000mm |
|
Processing thicknes |
10-60mm |
10-60mm |
|
Grinding head quantity |
20pieces |
20pieces |
|
Grinding head motor power |
20*7.5kw |
20*7.5kw |
|
Transmission belt motor power |
4kw |
4kw |
|
Transverse beam pendular motor power |
2*4kw |
2*4kw |
|
Clean motor power |
1.1kw |
1.1kw |
|
Fan motor power |
2.2kw |
2.2kw |
|
Transmission-speed for belt |
0-3000mm/min |
0-3000mm/min |
|
Compressor provide presssure |
0.60-0.8Mpa |
0.60-0.8Mpa |
|
Cooling water pressur |
≥0.15Mpa |
≥0.15Mpa |
|
Water consumption of single-head |
≥25L/min |
≥25L/min |
|
Total weigh |
14000kgs |
15000kgs |
|
Installation size |
10000*2150*1960mm |
10000*2560*1960mm |
