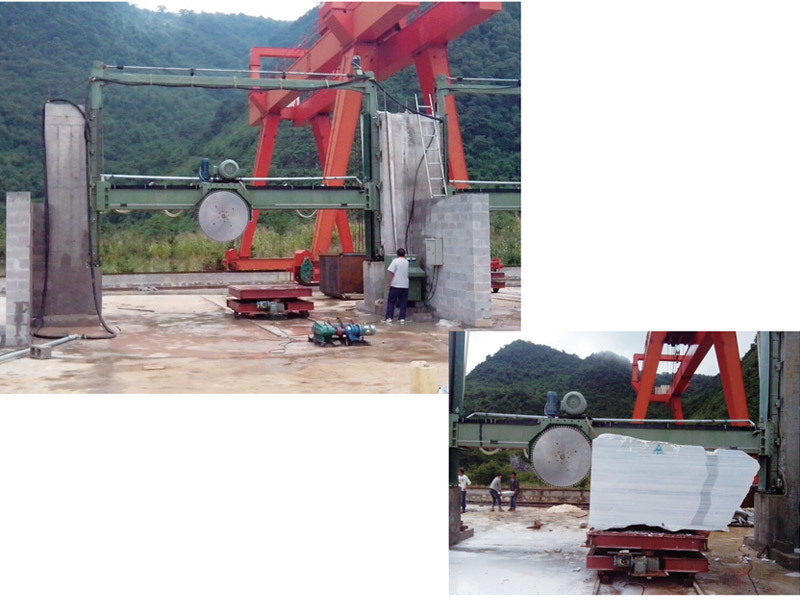

Model XLJ1300 Marble-block Trimming Machine

没有此类产品
I want to make an inquiry
Product Description

It is fitted with diamond cutters and high-speed grinding technology,is suitable for trimming marble block.

Blade diameter                        Ф1300mm

Main motor power                     55kw

Blade longitudinal stroke         3500 mm

Elevation motor power              3kw

Blade elevation stroke             2500 mm

Feeding motor power               3kw

Blade feeding speed               0—2000 mm/min

Total power                              66kw

Block size (L×W×H)               3500×2500×2800mm

Overall size                9290×7000×6030mm

Water consumption                >100L/min

Weight                        9000kg
