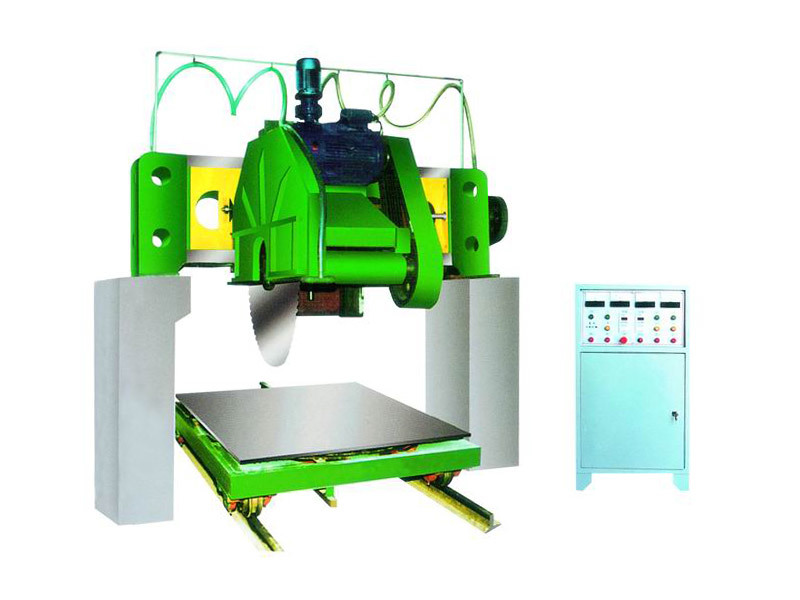

Model LJ1200model gantry saw

没有此类产品
I want to make an inquiry
Product Description

It is fitted with diamond cutters and high-speed cutting technology, is suitable for cutting marble and granite.

It has the following features:

Reasonable structure, low manufacture cost, stable working, high cut-off efficiency, flat and bright cut surface, high rate of finished products, no mechanical fragment, no rust pollution.

Wide application rage: It is suitable for cutting marble and granite slabs

over 10mm in thickness.

Easy-to-operate and safe operation: Except block conveying truck, all the

over parts are manual or automatic (according to customer decide). Feeding speed can be regulated according to different hardness of slabs to be processed, which not only guarantee safe operation, but also improve cut-off efficiency. With interlocking mechanism, the electrical system is safe and reliable.

With diamond cutting technology, it also features low grinding resistance;

high cut-off efficiency, long life of cutters and better cut surface finish.

Main technical parameter:

power of main motor                22kw

maximal diameter of blade       1600mm

power of elevation motor         1.1kw

maximal transverse travel of blade      1650mm

power of block trolley truck motor      1.1kw

maximal elevation travel of blade        700mm

power of feed motor           0.75kw

dimensions for truck (L×W)      1300 ×1300mm

total power       24.95kW

maximal size block(L×W×H)
2800 ×1600 ×750mm

overall dimensions(L ×W×H)    5000×3840×3380mm

flow of cooling water               >100L/min

weight          3800kg
