PRODUCTS
The company integrates scientific research design, production, sales and service.

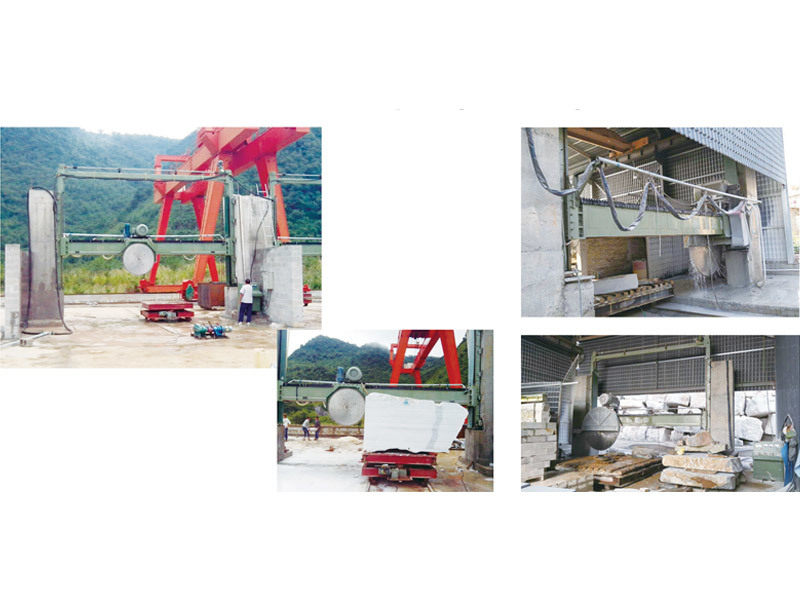

Model LMJ2200 Gantry Large Cutting Machine
|
It is fitted with diamond cutters and high-speed grinding technology,is suitable for cutting marble block. |
|
|
Blade diameter Ф2200mm Blade longitudinal stroke 3500 mm Blade elevation stroke 2500 mm Blade feeding speed 0—2000 mm/min Block size (L×W×H) 3500×2500×2800mm Water consumption >100L/min |
Main motor power 55kw Elevation motor power 3kw Feeding motor power 3kw Total power 66kw Overall size 9290×7000×6030mm Weight 9000kg |
